HBCP303
HBCP303

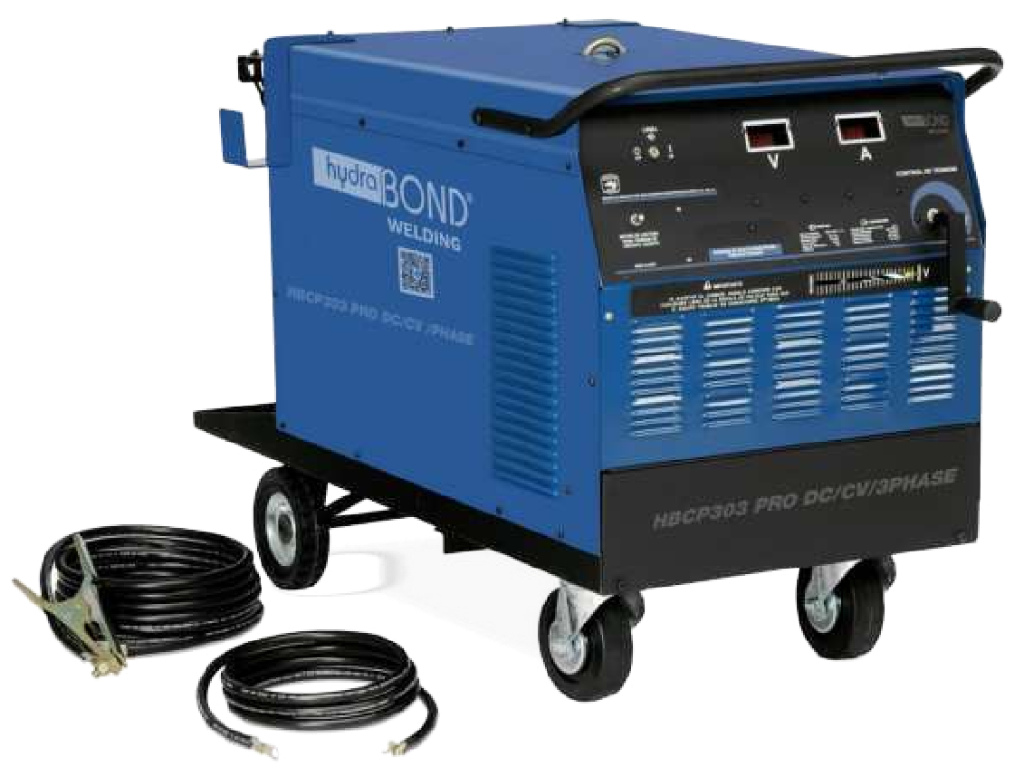

Industrial 3-Phase MIG Welder
Heavy Industrial · Continuous Duty · 3-Phase · 400A
MIG (GMAW) — micro wire 0.035"–1/16"Flux Cored tubular (FCAW) with or without gas
Quick Specifications
Input Voltage
220V / 440V AC
Output (100% CT)
300A @ 32V DC
Output (60% CT)
400A @ 32V DC
Welding Range
20A–400A / 13–36V DC
Net Weight
273 lb (124 kg) · Emb: 282 lb (128 kg)
Dimensions
H: 838mm (33") · W: 571mm (22.5") · L: 1232mm (48.5")
Key Features
- Momentary switch to verify voltage setting
- Digital meters
- Excellent arc stability when welding
- Forced ventilation cooling system
- Side support for cables and torch
- 14-terminal receptacle for feeders & AEC 200 aluminum torch (optional)
- Mechanical voltage control
- Casters included for easy movement
Applications
- Continuous industrial work
- Technical institutes
- Maritime & land container manufacture
- Steam boilers, pressure vessels & piping
- Automotive industry
- Food industry equipment
- Pharmaceutical & medical equipment
- Industrial process plants
Comes With
- Cable with ground clamp
- Interconnection cable
- Owner manual, operation guide, maintenance guide, parts list & warranty
Optional Accessories
- S 302 T 2-roll feeder
- PF 400 torch
- Push Pull torch for aluminum
Technical Data Sheet
Download PDFUPC: 677879591286
