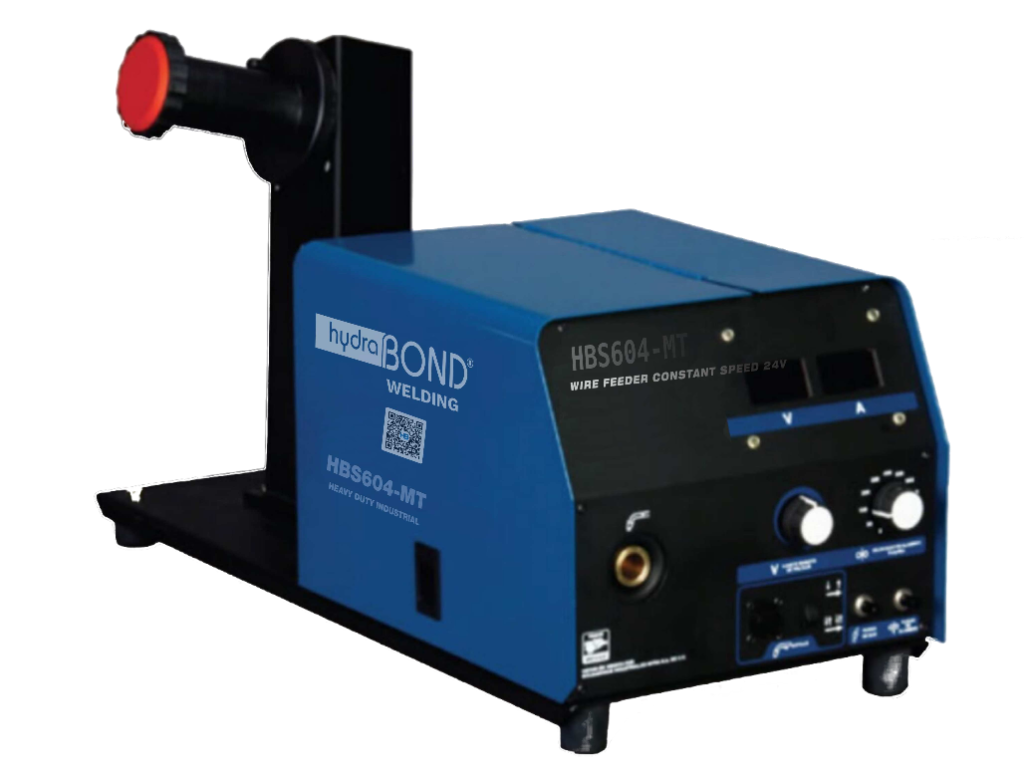

HBS604-MT
HBS604-MT
Constant Speed Wire Feeder
Heavy Industrial · AC · 4-Roll Drive · 2T/4T
MIG (GMAW) — 0.6–1.2mm (0.023"–0.045")Flux Cored (FCAW) — 0.8–3.2mm (0.030"–1/8")
Quick Specifications
Power Supply
24V AC, 1-phase, 60Hz, 10A
Number of Rollers
4 rolls
Electrode Diameter
0.6mm (0.023") – 3.2mm (1/8")
Speed Range
Min 1.3 m/min (50 IPM) · Max 22.8 m/min (900 IPM)
Net Weight
19.5 kg · Pack: 21.5 kg
Dimensions
H: 387mm · W: 286mm · L: 641mm
Key Features
- 2T & 4T trigger mode control
- 2T: press to start welding, release to stop
- 4T: press to start, release to continue — long beads without hand fatigue
- 4T second press: feeder prepares to finish; release to stop
- Voltage and wire speed control
- Set of 0.9 and 1.2mm rollers included
- Wire trimmer & gas hose included
Applications
- For use with constant potential power sources
- Suitable for HBDELTAMIG 355, HBDELTAMIG 455 & HBDELTAMIG 655
- HBOPUS 2K-355 and HBOPUS 560
Comes With
- Set of 0.9 and 1.2mm (0.035" & 0.045") rollers
- Voltage and wire speed control
- Wire trimmer
- Gas hose
- Owner manual, operation guide, maintenance guide, parts list & warranty
