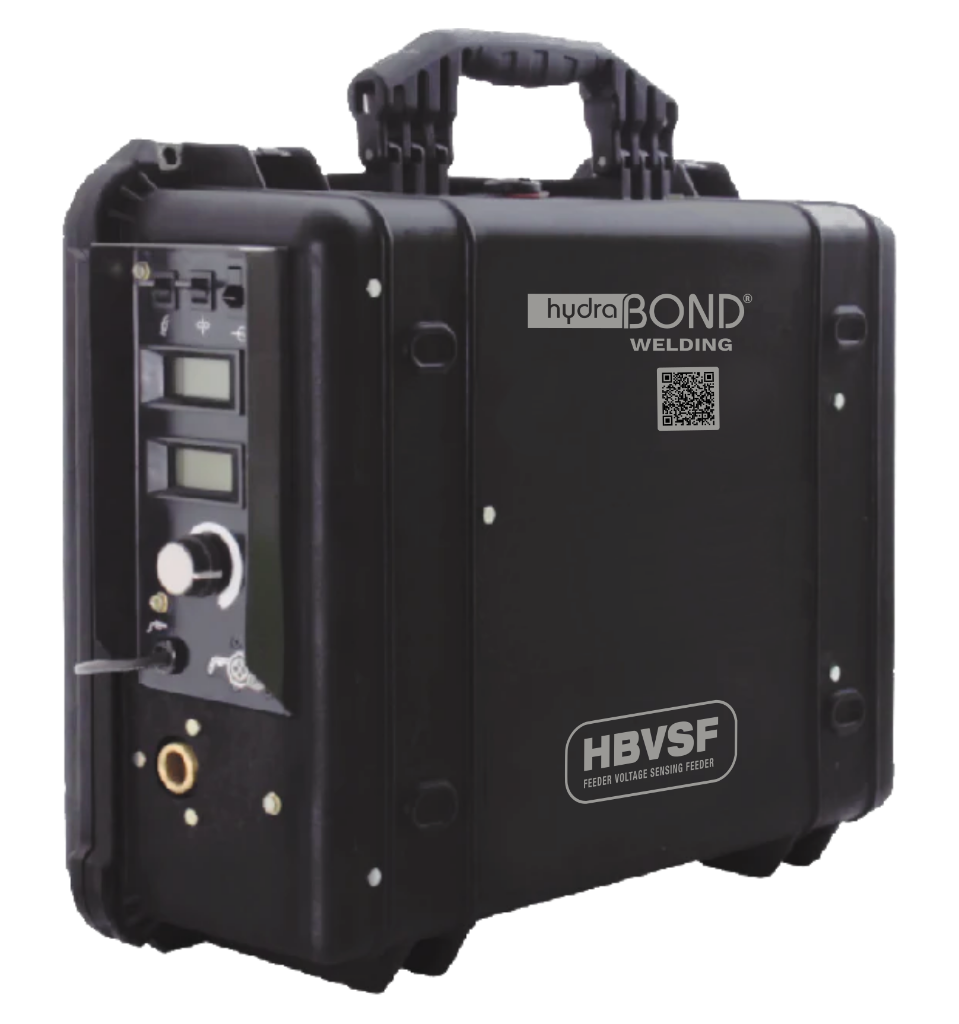

HBVSF
HBVSF
Voltage Sensing Portable Wire Feeder (2 Roll)
MIG · Flux Cored · 400A · Portable Case
MIG (GMAW)Flux Cored (FCAW)
Quick Specifications
Weld Circuit Rating
400A @ 60% Duty Cycle
Spool Capacity
12" (304mm) · 45 lb (20.4 kg)
Wire Diameters
0.023"–5/64" (0.6–2.0mm)
Wire Feed Speed
60–800 IPM (1.52–20.32 m/min)
Dimensions
H: 17" (432mm) · W: 8.5" (216mm) · D: 21.5" (546mm)
Weight
33 lb (15 kg)
Key Features
- Trigger hold — reduces fatigue on longer welds
- Two (2) gear-driven rolls with Tool-Less roll change
- 0.035/0.045 solid wire drive rolls included
- Accepts Miller style gun connection
- Digital LED meters — amperage or wire feed speed
- CC/CV mode selector switch
- High/Low wire feed speed selector switch
- Wire jog button & gas purge button
- Resettable circuit breaker
- 15' sensor lead with disconnect & Lenco MG-180 clamp
- 3' of 3/0 AWG input cable w/ Lenco LC-40HD male connector
- High impact latching case with folding handle & removable legs
Applications
- Contract Welding Services
- Plant Maintenance Shops
- General Fabricators
- Construction applications
- Shipbuilding
- Rental Fleets
- Manufacturing
Comes With
- Owner manual, operation guide, maintenance guide, list of parts & warranty
Technical Data Sheet
Download PDFUPC: 767787958923
