Welding Machines

Full TDS catalog — all hydraBOND® welding machines with complete specs, features & applications.

HB200 HB300MM HB355 HBVSF HB2000 HBCP303 HBS604-MT

View Full Flipbook Catalog ← All Welding Products ⚖️ Compare Models

IGBT Technology

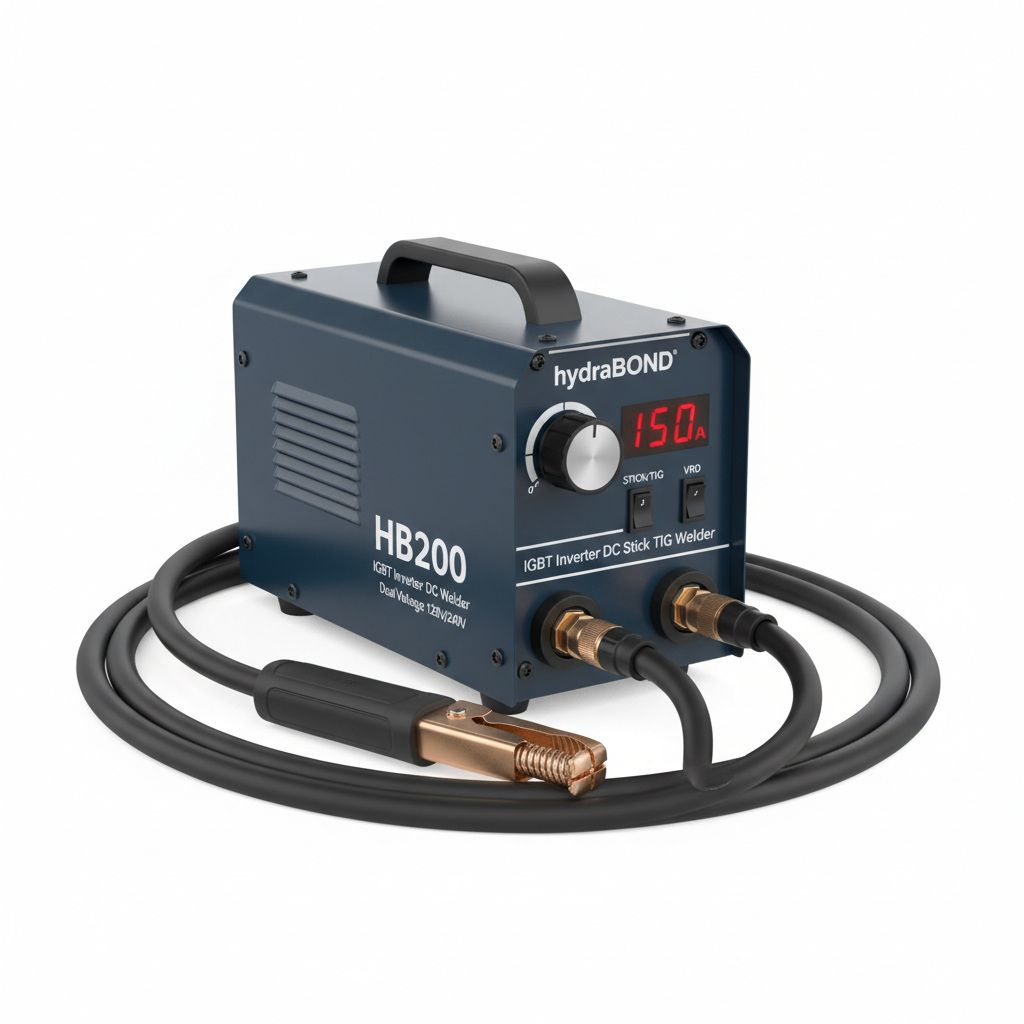

HB200

HB200 IGBT Inverter

DC Stick & TIG Welder

Light Industrial · Single Phase

Processes

DC Stick (SMAW)TIG (GTAW)

Quick Specs

Input Power

120 / 240 V, 50/60 Hz

Amperage Range

30A – 200A

Duty Cycle

40%

Phase

Single Phase

Net Weight

15.4 lb (7.0 kg)

Dimensions

H: 11.3" · W: 6.1" · L: 16.9"

Key Features

Electronic current control for precise arc
INVERTER type power supply
Compact & lightweight — carry on shoulder
Overheating protection with duty-cycle guard
Forced ventilation cooling system
Dual supply voltage 127/220V AC ±10% auto-config

Applications

Welding workshopsAutomotive mechanic workshopsDIY & Metal artFarm/RanchMaintenance/Repair

Specifications

Phase / Input	Rated Output	Range	kVA / kW
Stick 120V	130A @ 23V	30–130A	5.4 kW
Stick 240V	200A @ 26V	30–200A	10.9 kW
TIG 120V	130A @ 15V	30–130A	4.2 kW
TIG 240V	200A @ 18V	30–200A	7.2 kW

Comes With

Shoulder carry strap
Input cable
Set of cables (ground clamp, electrode holder, quick connectors)
Owner manual, maintenance guide, parts list & warranty

Request Quote

UPC: 767787958909

NEW

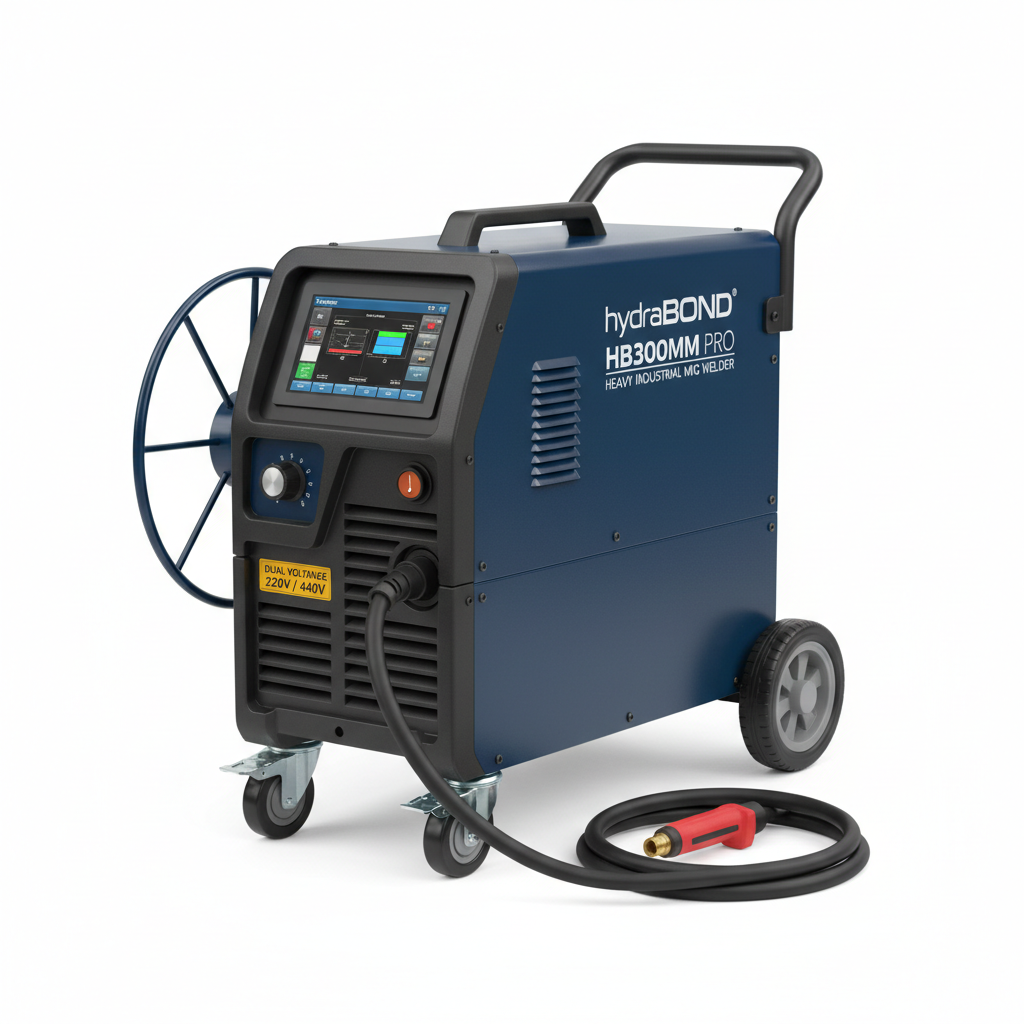

HB300MM

HB300MM PRO

Heavy Industrial MIG Welder

Multi-Process · Dual Voltage 220/440V

Processes

MIG (GMAW)Pulsed MIG (GMAW-P)Flux Cored (FCAW)DC TIG (GTAW)Pulsed TIG (GTAW-P)

Quick Specs

Input Power

208–575 V, single-phase

Amperage Range

5A – 350A

MIG Output

230A @ 25.5V, 60% duty cycle

Stick Output

200A @ 28V, 60% duty cycle

Net Weight

265 lb (120 kg)

Voltage Supply

220V / 440V AC (2-position switch)

Key Features

Innovative 7-inch color touchscreen
Memory capacity to save welding parameters
2-position switch: 220V / 440V supply
Adjustable spot & trim for repetitive spot welding
14-pin receptacle
Overheating protection, forced ventilation cooling

Applications

Automotive workshopsFood industry equipmentContainer manufacturingRefrigeration & A/C equipmentIndustrial process plants

Specifications

Phase / Input	Rated Output	Range	kVA / kW	Notes
220 VAC	250A @ 26.5V (60% DC)	30–280A	60 kVA	190A @ 23.5V (100% DC)
440 VAC	280A @ 28V (45% DC)	30–280A	30 kVA

Comes With

MIG 250 AMP torch
Teflon guide for MIG 250A torch
Spotting nozzle for MIG 250A torch

Request Quote

UPC: 767787958855

NEW

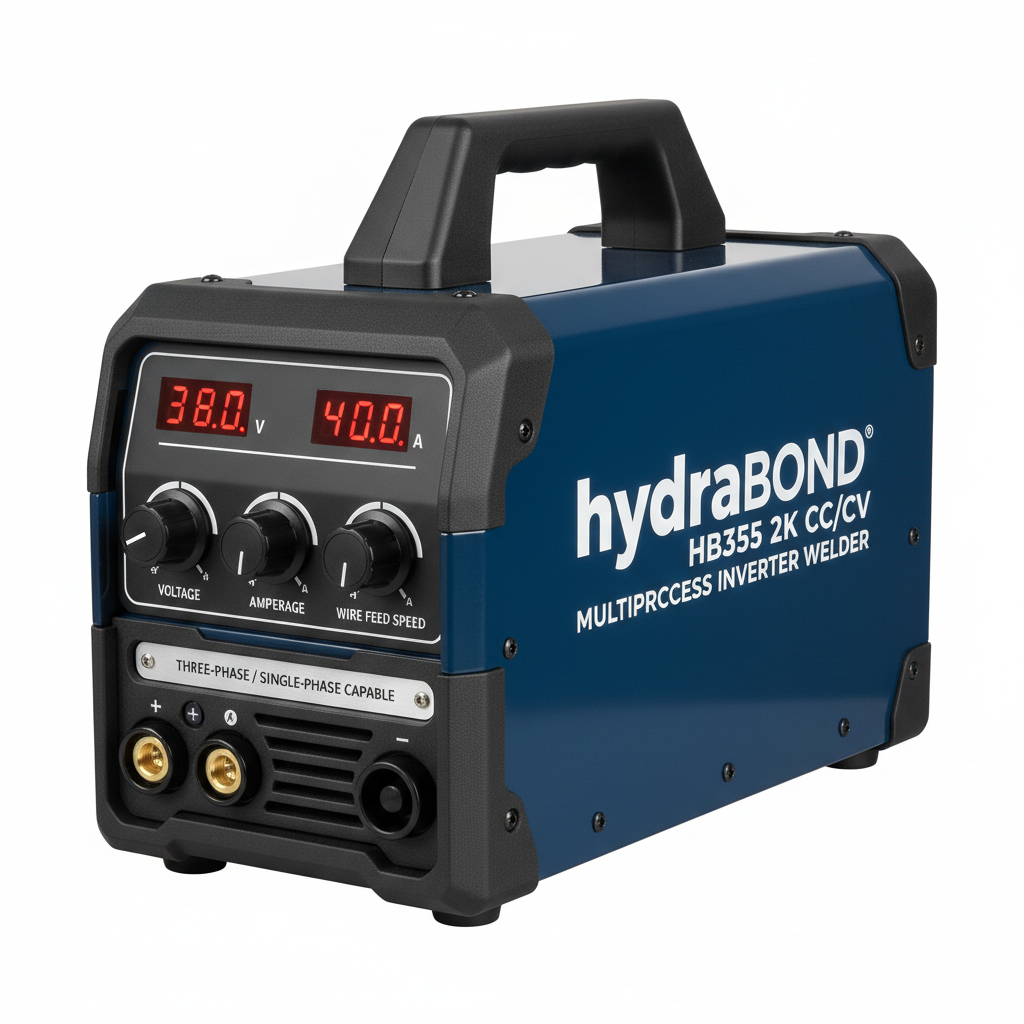

HB355

HB355 2K CC/CV

Multiprocess Inverter Welder

MIG · Stick · DC TIG · 1 & 3 Phase

Processes

MIG (GMAW)Pulsed MIG (GMAW-P)Flux Cored (FCAW)DC TIG (GTAW) — Contact-TIGStick (SMAW) DC

Quick Specs

3-Phase Output

400A @ 36V DC, 40% duty cycle

1-Phase Output

225A @ 29V DC, 60% duty cycle

Continuous (3Ph)

230A @ 29V, 100% duty cycle

Wire Diameter

0.9–1.6 mm (0.035"–1/16")

Net Weight

83.7 lb (38 kg)

Dimensions

H: 17.3" · W: 13.7" · L: 24"

Key Features

Advanced inverter technology
Arc control for difficult electrodes
Electronic inductance control
Automatic voltage regulator compensates power variations
Failure indicator with error code on screen
Auto fan — runs only when needed

Applications

ConstructionShipbuildingRailroadTruck/trailer manufacturingFabricationRepair shopsRental fleetsPower generation plants

Specifications

Phase / Input	Rated Output	Range	kVA / kW	Notes
3-Phase 220V	300A @ 32V (60% DC)	5A–400A / 10–35V	95 kVA	230A @ 29V, 100% DC
3-Phase 440V	300A @ 32V (60% DC)	5A–400A / 10–35V	95 kVA
1-Phase 220V	225A @ 29V (60% DC)	5A–400A / 10–35V	95 kVA	175A @ 27V, 60%

Comes With

Two universal plugs
Power supply 3m × 4×8 AWG
Owner manual, operation guide, maintenance guide, parts list & warranty

Request Quote

UPC: 767787958916

NEW

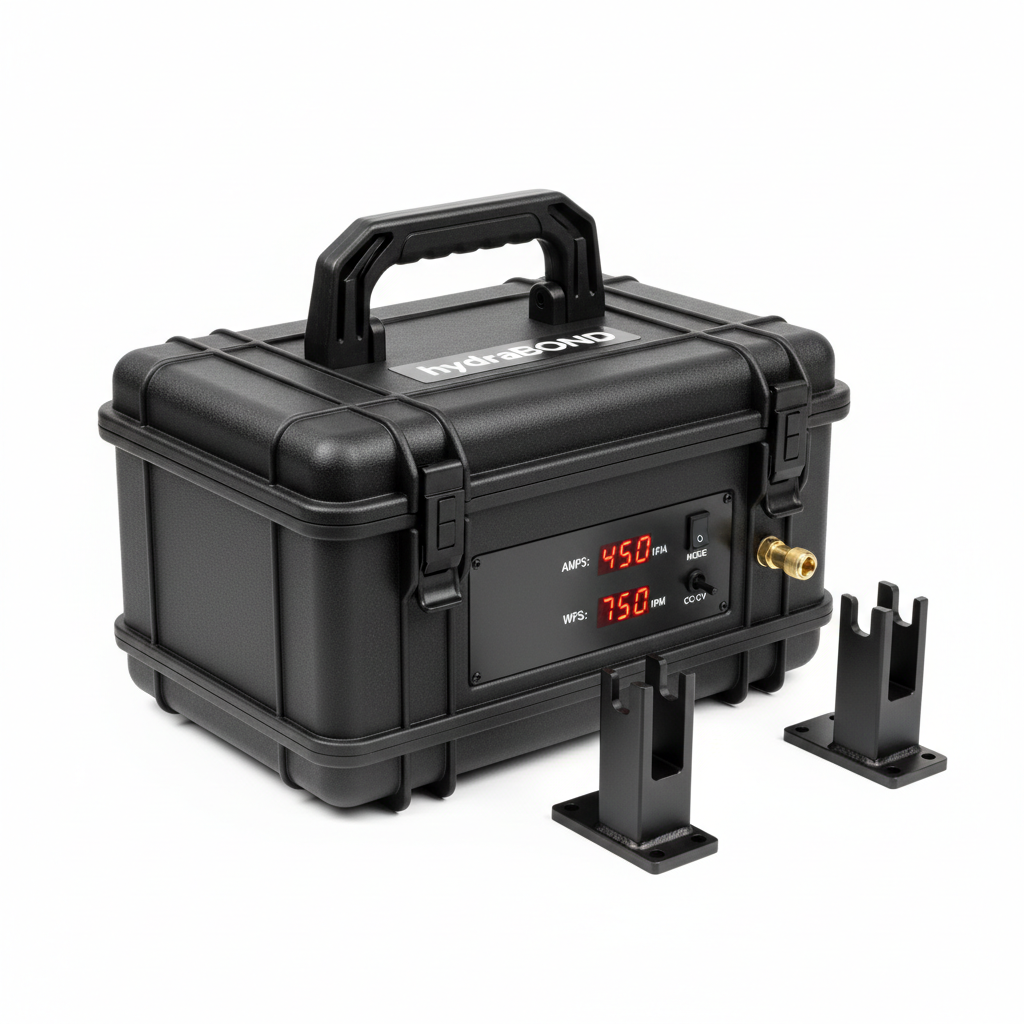

HBVSF

Voltage Sensing Portable Wire Feeder

MIG · Flux Cored · 2-Roll Drive

Processes

MIG (GMAW)Flux Cored (FCAW)

Quick Specs

Weld Circuit Rating

400A @ 60% Duty Cycle

Spool Capacity

12" (304 mm)

Wire Diameters

0.023"–5/64" (0.6–2.0 mm)

Wire Feed Speed

60–800 IPM (1.52–20.32 m/min)

Dimensions

H: 17" · W: 8.5" · D: 21.5"

Weight

37 lb (17 kg)

Key Features

Trigger hold — reduces fatigue on long welds
Two (2) gear-driven rolls, Tool-Less roll change
0.035/.045 solid wire drive rolls included
Accepts Miller style gun connection
Digital LED meters (amperage or wire feed speed)
CC/CV mode selector switch

Applications

Contract Welding ServicesPlant Maintenance ShopsGeneral FabricatorsConstruction applicationsShipbuildingRental FleetsManufacturing

Specifications

Phase / Input	Rated Output	Range	kVA / kW	Notes
Open-Circuit / Arc Voltage, 14–110V DC	CV or CC DC Power Source Only	60–850 IPM	300A @ 100% DC / 400A @ 60% DC	Spool: 45 lb (20.4 kg), 12 in. (304 mm)

Comes With

Owner manual, operation guide, maintenance guide, list of parts & warranty

Request Quote

UPC: 767787958923

PFC Technology

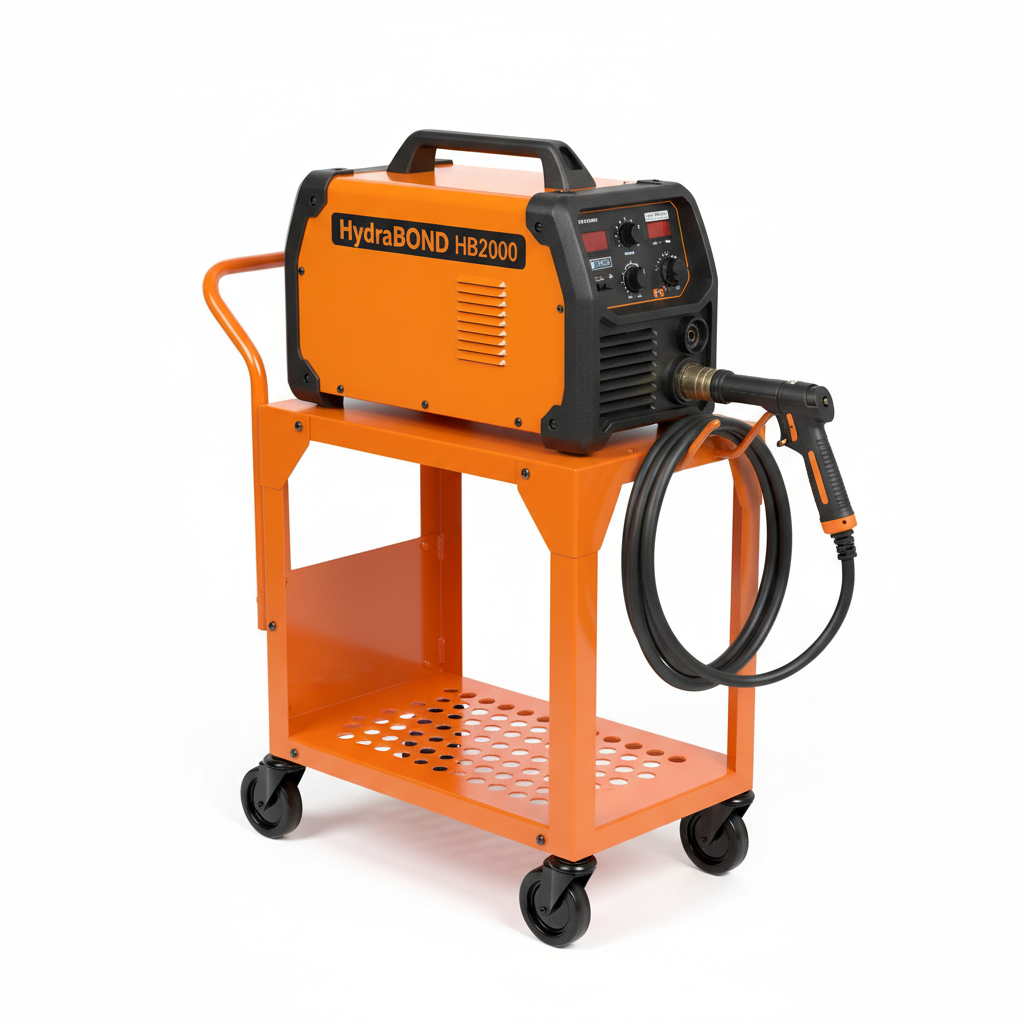

HB2000

Multi-Process MIG · Stick · TIG

Body Shop · Collision · Refinishing · 200A DC

Processes

DC TIG (GTAW)MIG BrazingFlux Cored (FCAW)MIG (GMAW) / Stick (SMAW)

Quick Specs

Input Power

110V / 20A or 230V / 18A, 50/60 Hz

Output

200 Amps DC

Phase

Single Phase

Frequency

50/60 Hz

Warranty

3 Year

Engineered for

Body Shop, Collision & Refinishing

Key Features

PFC (Power Factor Correction) multi-process technology
DC TIG with Lift-TIG arc start
MIG, Stick, Flux Cored — all in one unit
Runs on 110V or 230V single-phase
3-year warranty
Comes with multi-purpose welder cart

Applications

Body shops & collision centersAutomotive refinishingLight fabricationMIG brazing on thin metalsFlux cored & stick welding

Comes With

MIG torch MB15AK Air-Cooled 3m/10ft (ref. HB2004)
Regulator with hose (ref. HB2002, HB2003)
Earth clamp 200A with cable & DINSE connector (ref. HB2002)
HB Helmet (ref. HB2019) + Contact Tips .023/.030/.035

Request Quote

NEW

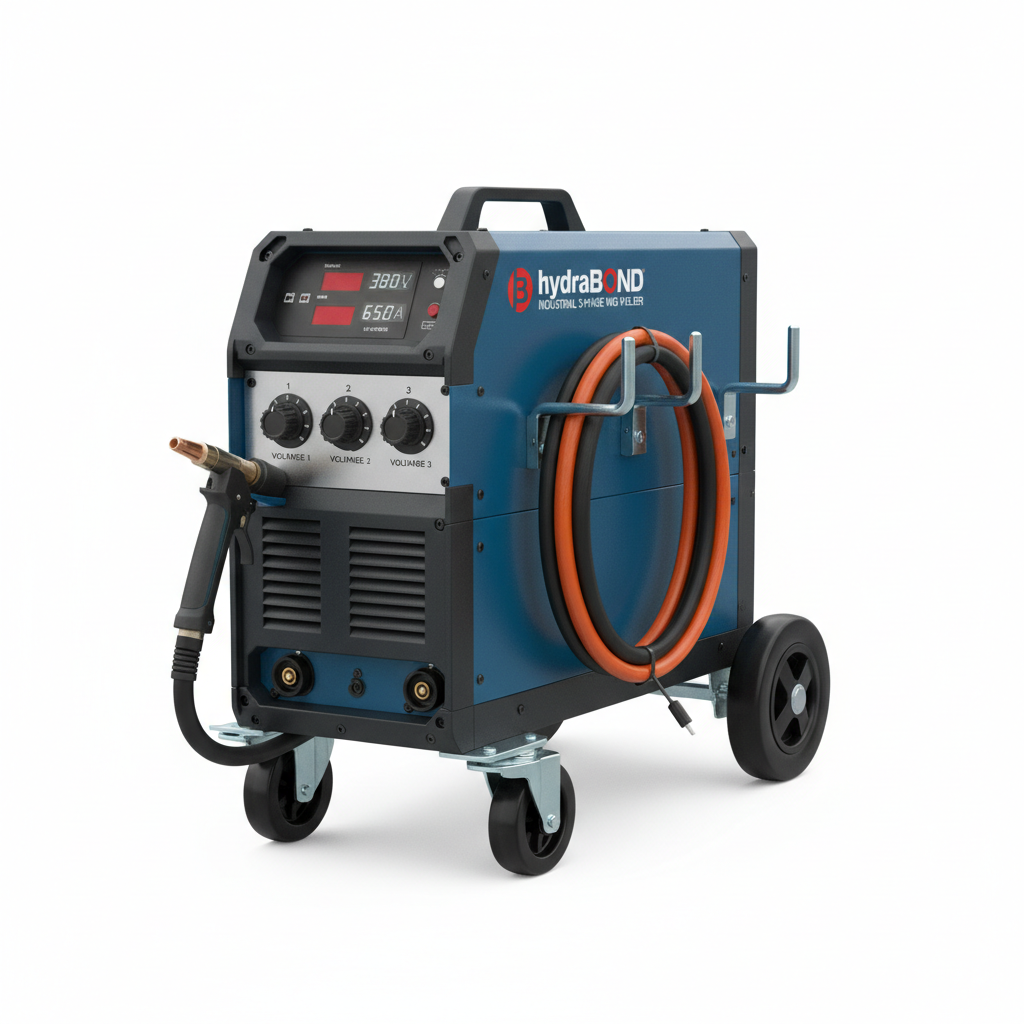

HBCP303

Industrial 3-Phase MIG Welder

Heavy Industrial · Continuous Duty · 400A

Processes

MIG (GMAW) — micro wire 0.035"–1/16"Flux Cored tubular (FCAW) with or without gas

Quick Specs

Input Voltage

220V / 440V AC

Output (100% CT)

300A @ 32V DC

Output (60% CT)

400A @ 32V DC

Welding Range

20A – 400A / 13–36V DC

Net Weight

273 lb (124 kg)

Dimensions

H: 33" · W: 22.5" · L: 48.5"

Key Features

Momentary switch for voltage verification
Digital meters
Excellent arc stability
Forced ventilation cooling system
Side support for cables and torch
14-terminal receptacle (optional AEC 200 aluminum torch)

Applications

Continuous industrial workTechnical institutesMaritime & land containersSteam boilers, pressure vessels & pipingAutomotive industryFood industry equipmentPharmaceutical & medical equipmentIndustrial process plants

Specifications

Phase / Input	Rated Output	Range	kVA / kW	Notes
220V AC	300A @ 32V (100% CT)	20–400A / 13–36V DC	12.3 kW	400A @ 32V (60% CT)
440V AC	300A @ 32V (100% CT)	20–400A / 13–36V DC	18 kW

Comes With

Cable with ground clamp
Interconnection cable
Owner manual, operation guide, maintenance guide, parts list & warranty

Request Quote

UPC: 677879591286

NEW

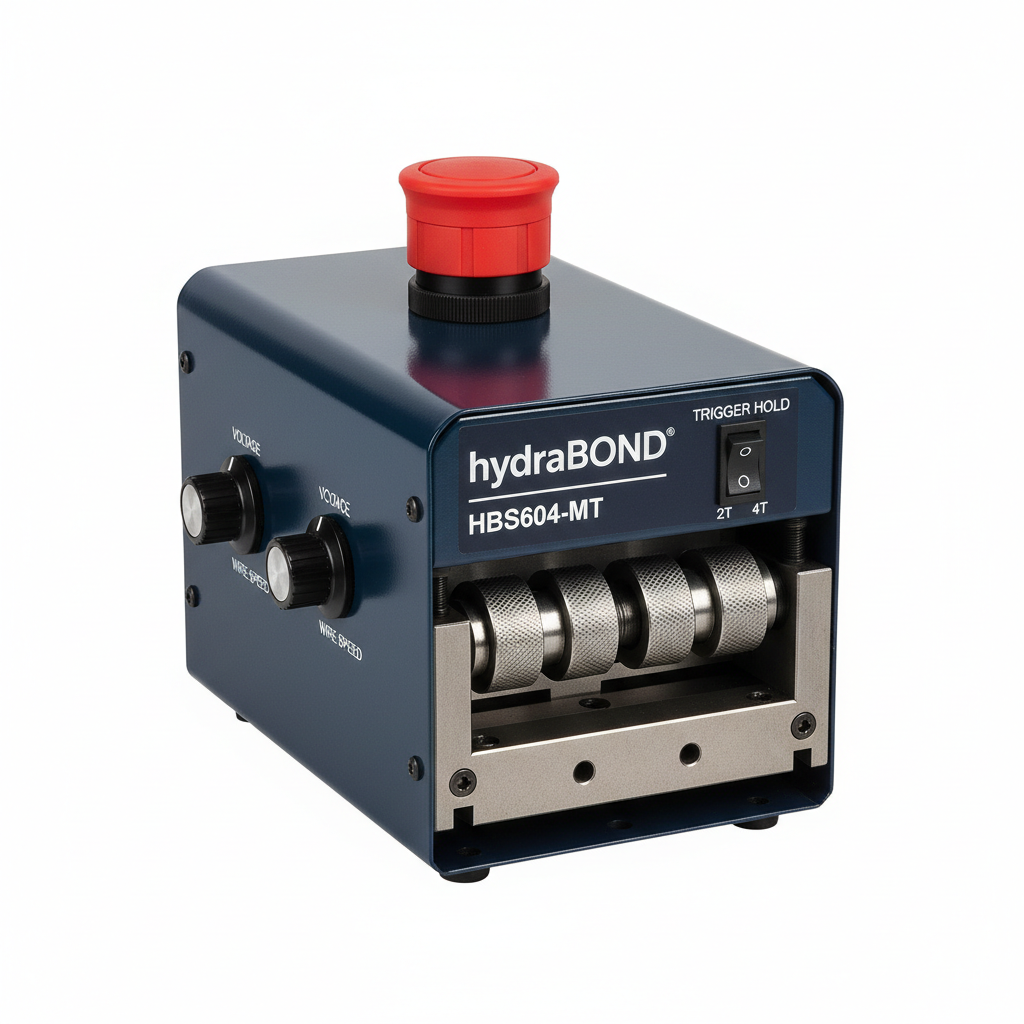

HBS604-MT

Constant Speed Wire Feeder

Heavy Industrial · AC · 4-Roll Drive

Processes

MIG (GMAW) — 0.6 to 1.2 mm (0.023"–0.045")Flux Cored (FCAW) — 0.8 to 3.2 mm (0.030"–1/8")

Quick Specs

Power Supply

24V AC, 1-phase, 60Hz, 10A

Number of Rollers

4 rolls

Electrode Diameter

0.6 mm (0.023") – 3.2 mm (1/8")

Speed Range

1.3–22.8 m/min (50–900 IPM)

Net Weight

19.5 kg · Pack: 21.5 kg

Dimensions

H: 387 mm · W: 286 mm · L: 641 mm

Key Features

2T & 4T trigger mode control
2T: press to start, release to stop
4T: press to start, release to continue (long bead without fatigue)
Press again to prep to finish, release to stop
Voltage and wire speed control
Set of 0.9 and 1.2 mm rollers included

Applications

For use with constant potential power sourcesSuitable for HBDELTAMIG 355, 455, 655HBOPUS 2K-355 and HBOPUS 560

Specifications

Phase / Input	Rated Output	Range	kVA / kW	Notes
24V AC / 10A	Constant Speed	0.6–3.2 mm wire	4-roll drive	Min 1.3 (50) · Max 22.8 (900) m/min

Comes With

Set of 0.9 and 1.2 mm (0.035" & 0.045") rollers
Voltage and wire speed control
Wire trimmer
Gas hose

Request Quote

UPC: 677879591118
